JACKS AND PLUGS
FAX: 773 792-2129 AUDIO LOUDSPEAKER PLUGS AND HEAVY DUTY 1/4" PHONE PLUGS
* Please visit the product pages on our website for the most up-to-date product information
AUDIO LOUDSPEAKER PLUGS

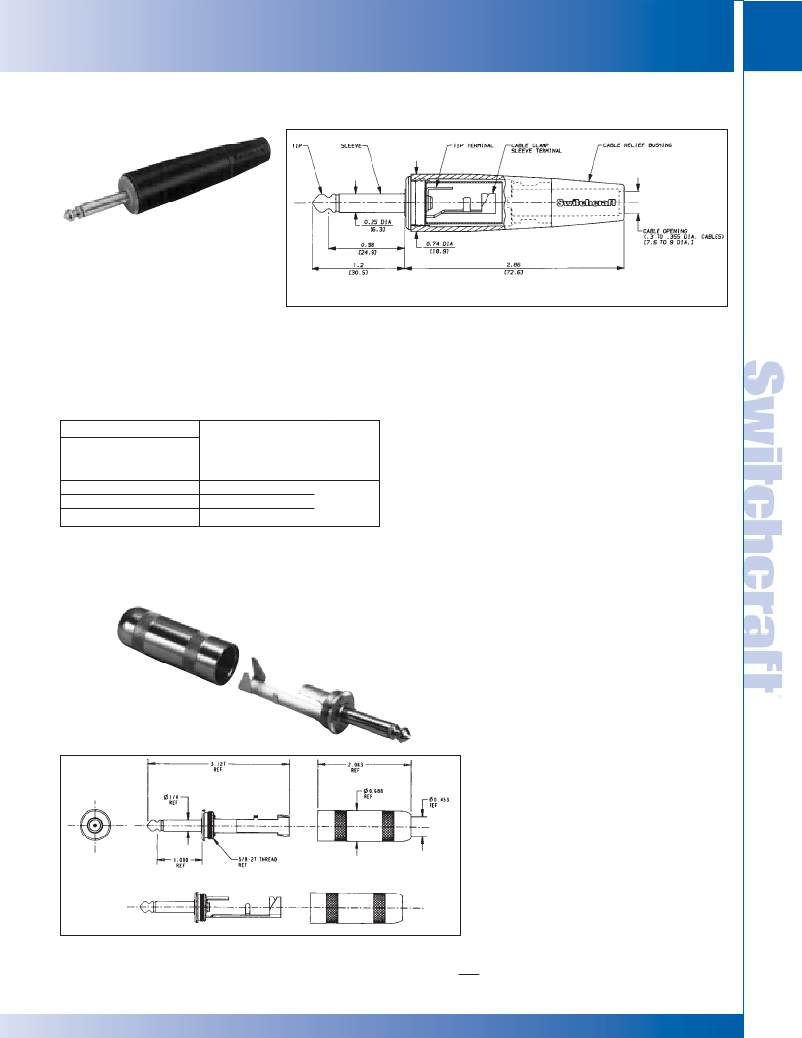

SERIES 187
Number 187BL (Typical)
The 187 series 1/4" phone plugs are similar to the
Switchcraft ? 184 plugs, except that they offer an attractive
tapered handle with a snap-in flex relief. Other features include:
? Larger tip terminal to accommodate wire sizes up to 14 AWG.
? Choice of Satin nickel or black finish.
? Black flex relief bushing can be specified in three different
cable diameter openings for maximum reliability of cable.
149
Part Number
Cable
Relief Typical
? Plug is rated at 15A rms (maximum) for use with audio
loudspeaker applications.
Nickel
Finish
187
187L
187D
Black
Finish
187B
187BL
187BD
Bushing Mating
diameter (inch) Jack 1
.3 to .33 (regular)
.3 to .355 (large) 11 or Z15J
.2 to .30 (small)
SPECIFICATIONS
Sleeve, Tip and Body: Nickel-plated copper alloy.
Terminals: Solder lugs: tinned copper alloy;
Screw: tin-plated.
Handles: Die-cast zinc. Satin nickel or black finish.
1. Other mating plugs are available. See Jacks Section.
Cable Relief Bushing: Black (thermoplastic elastomer).
HEAVY DUTY 1/4" COMMERCIAL PHONE PLUGS
? Switchcraft’s 188 is more heavy-duty than
our competitor's biggest 1/4" commercial
SERIES 188 Plug
DIMENSIONS ARE FOR REFERENCE ONLY
phone plugs.
? Large curved tip solder terminal makes it
easier to solder to heavy gauge wires.
? Longer sleeve terminal allows more room
to make sleeve solder connections.
? Extra-large cable clamp securely grips
cable of up to .450" in diameter.
? Will easily accommodate some varieties of
four conductor 14 gauge wire and parallel
two conductor 12 gauge wire.
? Bendable tab on sleeve terminal makes
termination easier by holding down cable
while soldering. In addition, such mechanical
retention makes for a superior solder
connection.
? Will handle up to 15 A. rms (maximum).
(continued on next page)
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
